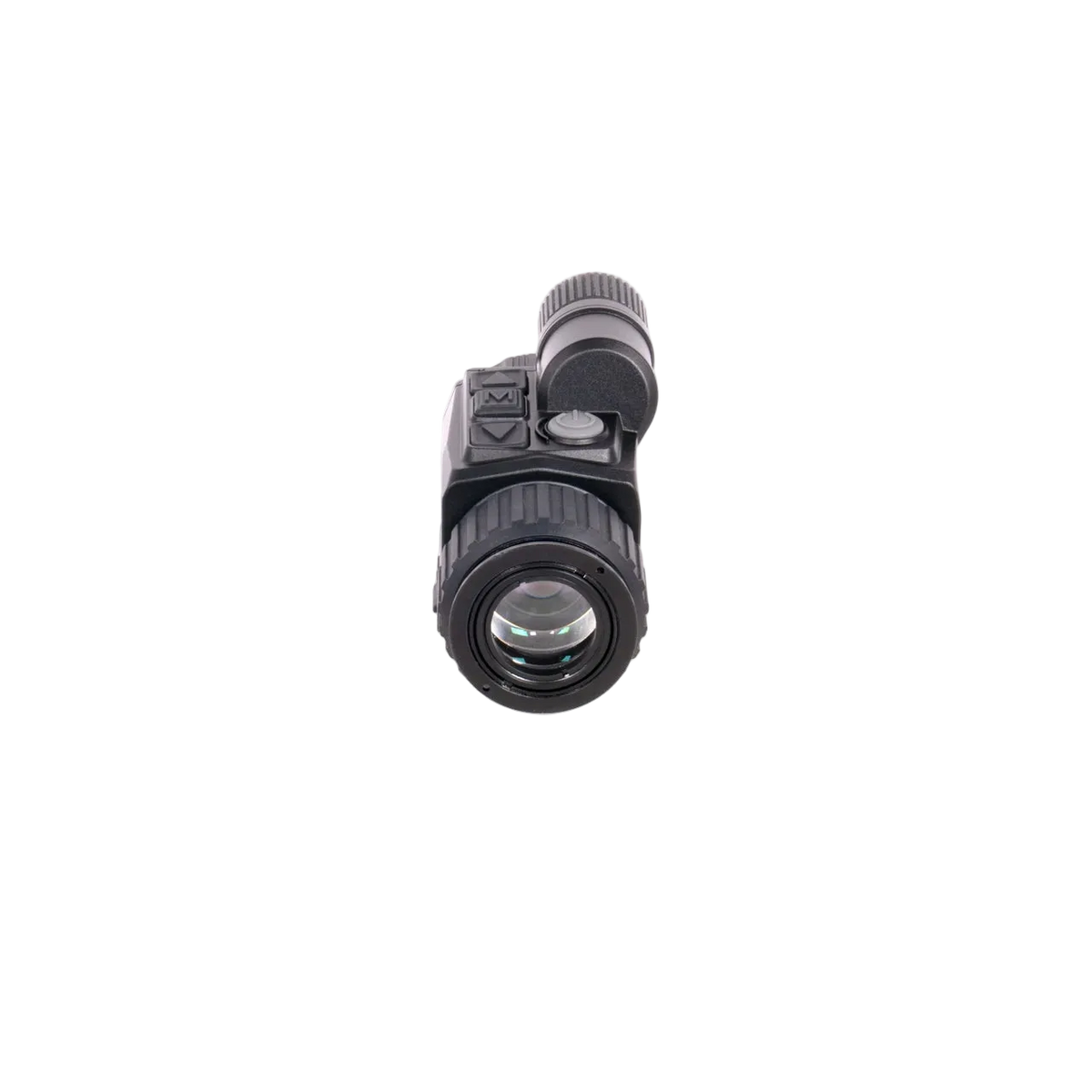

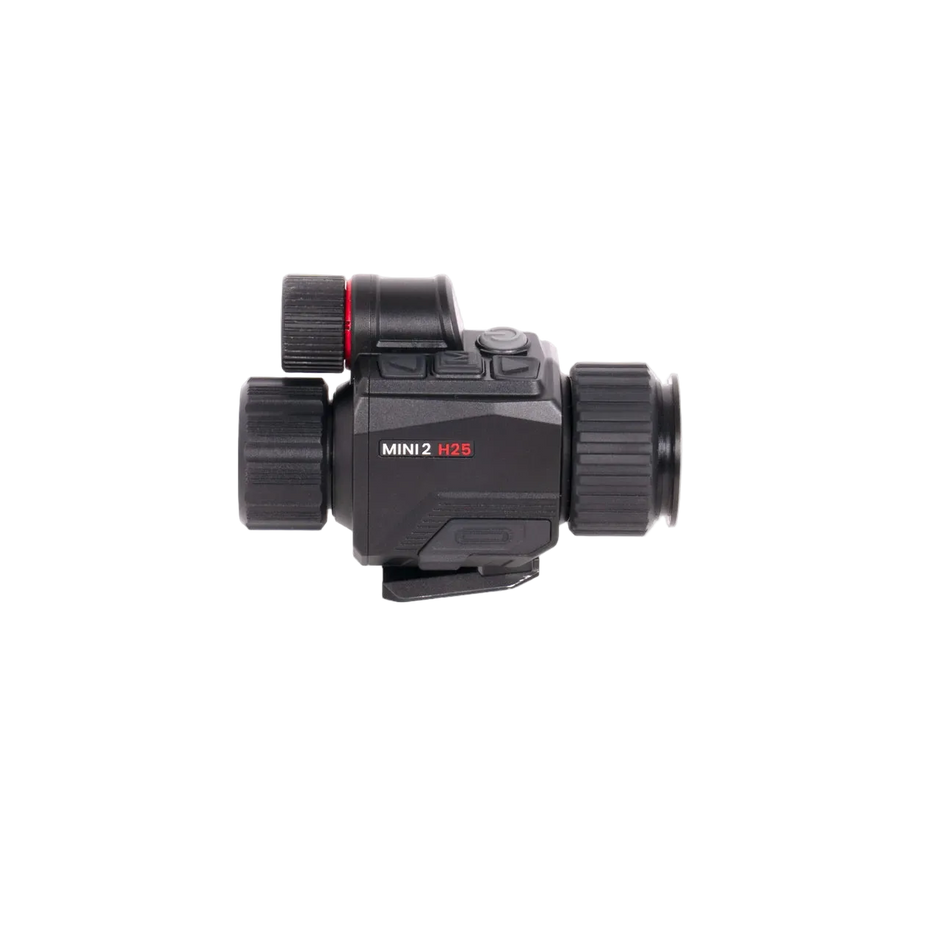

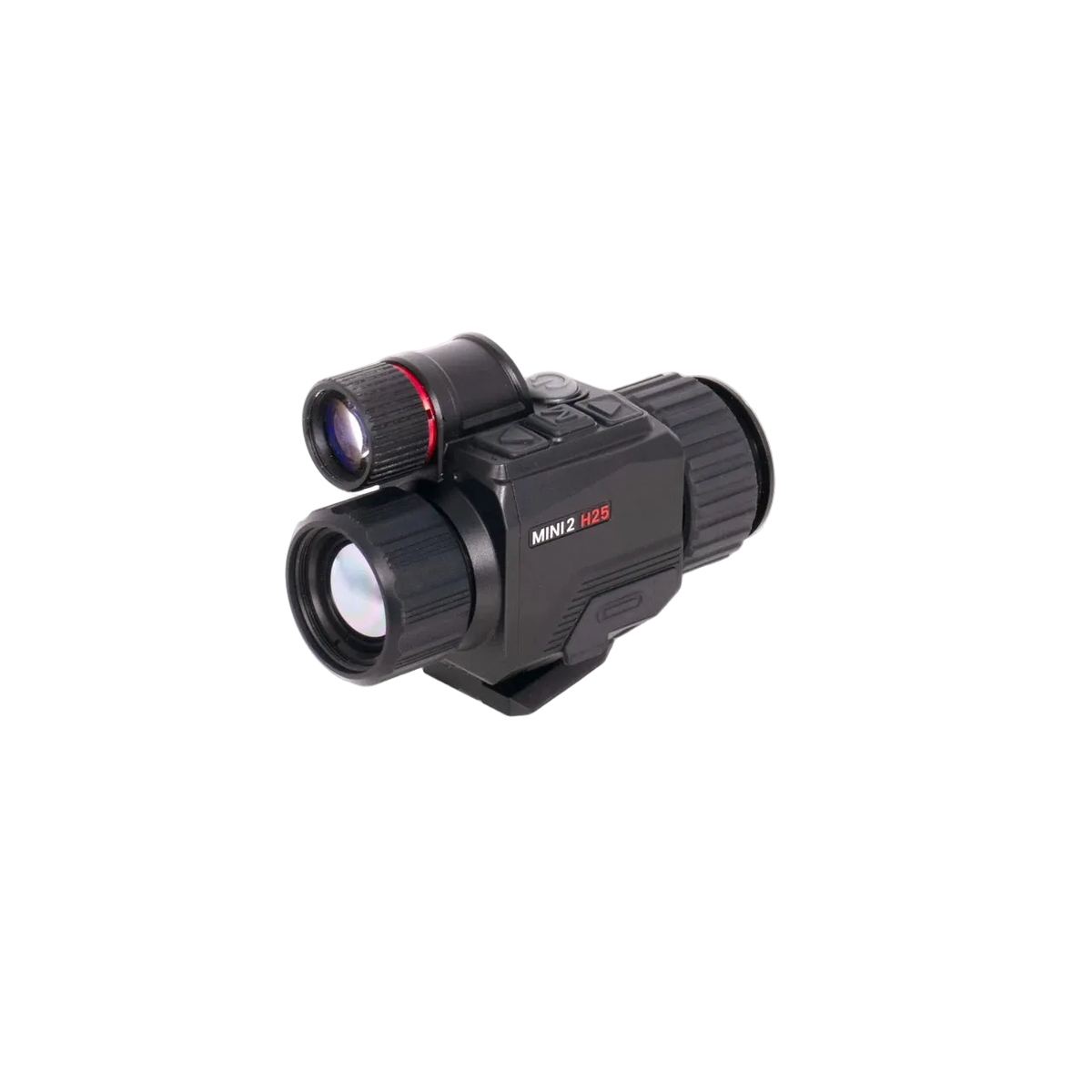

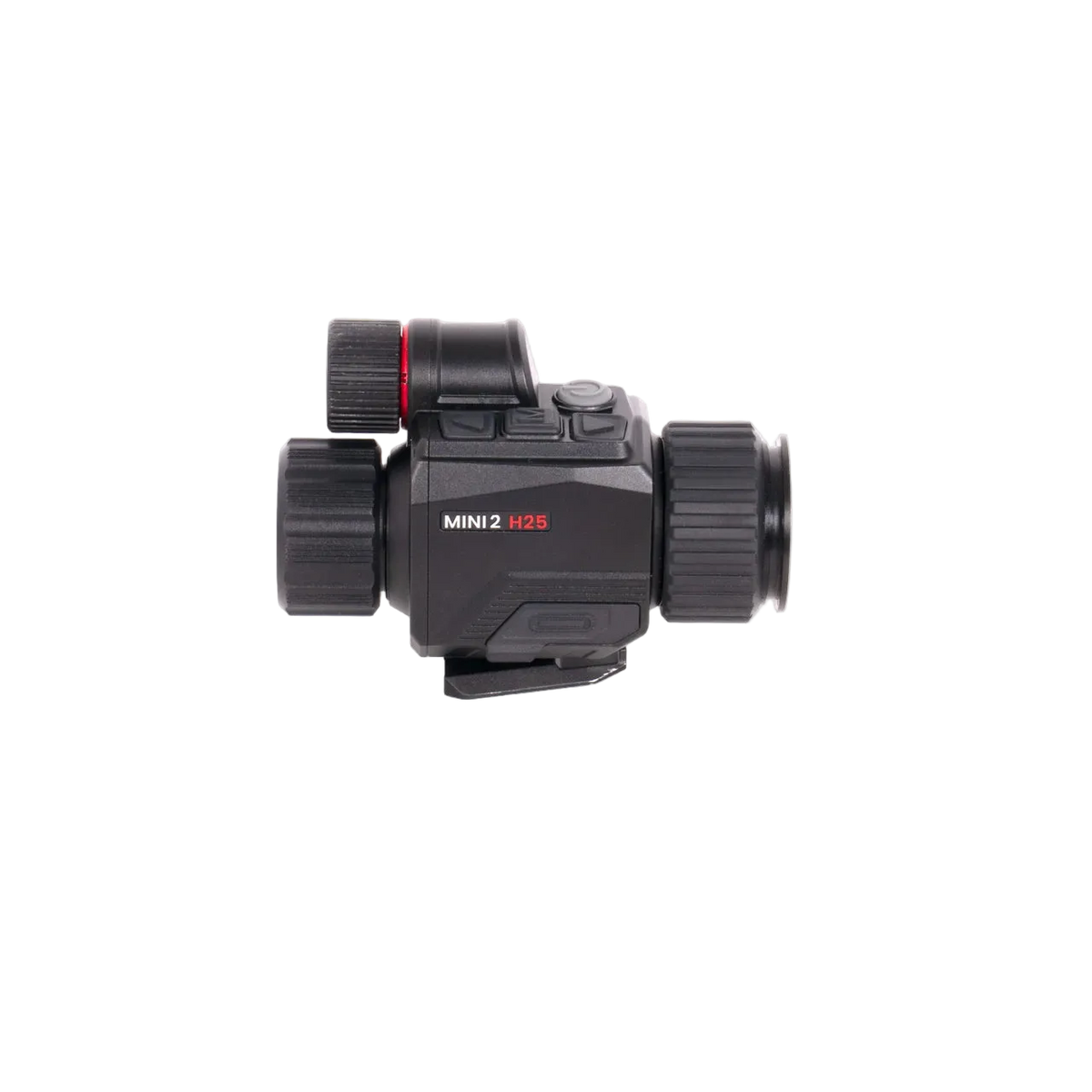

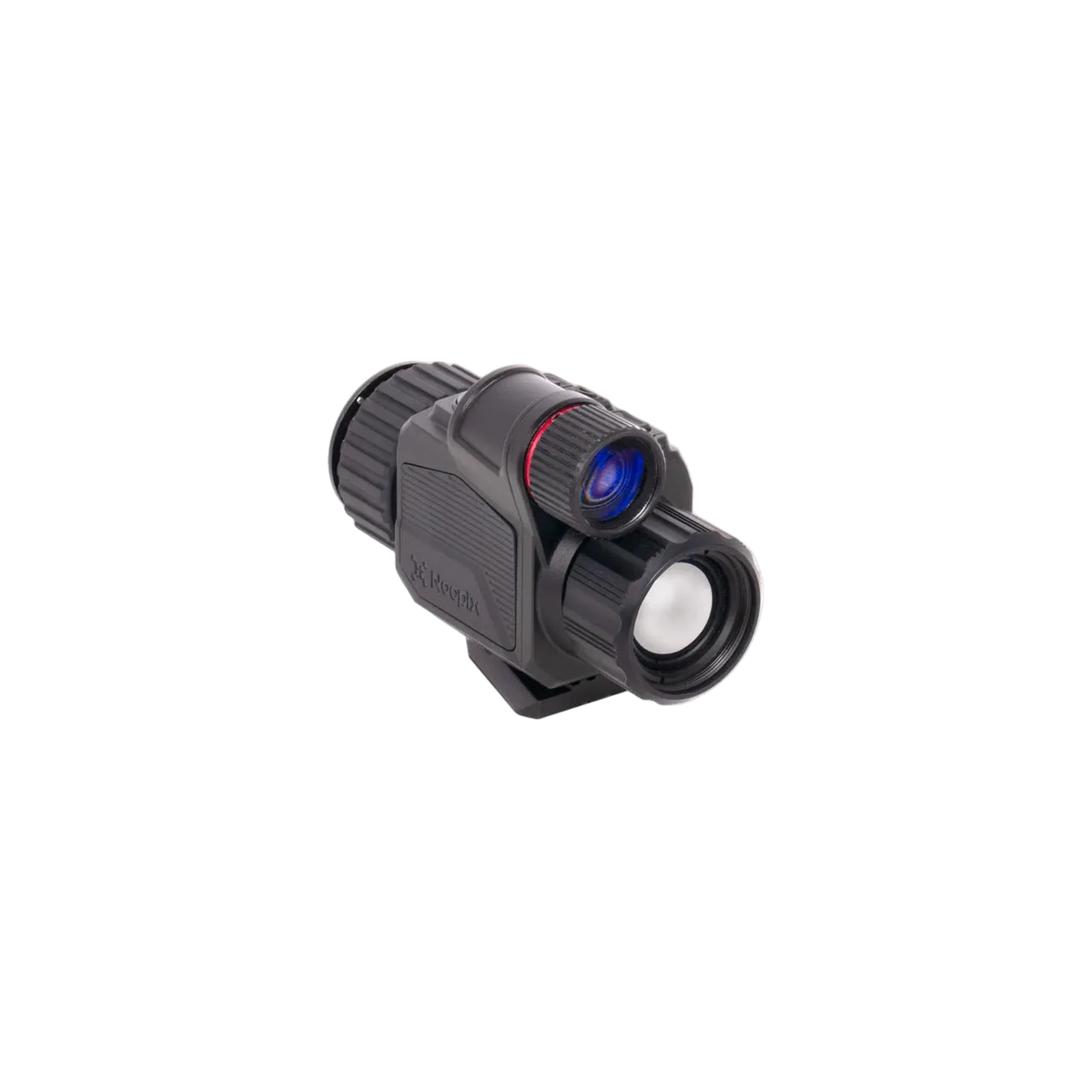

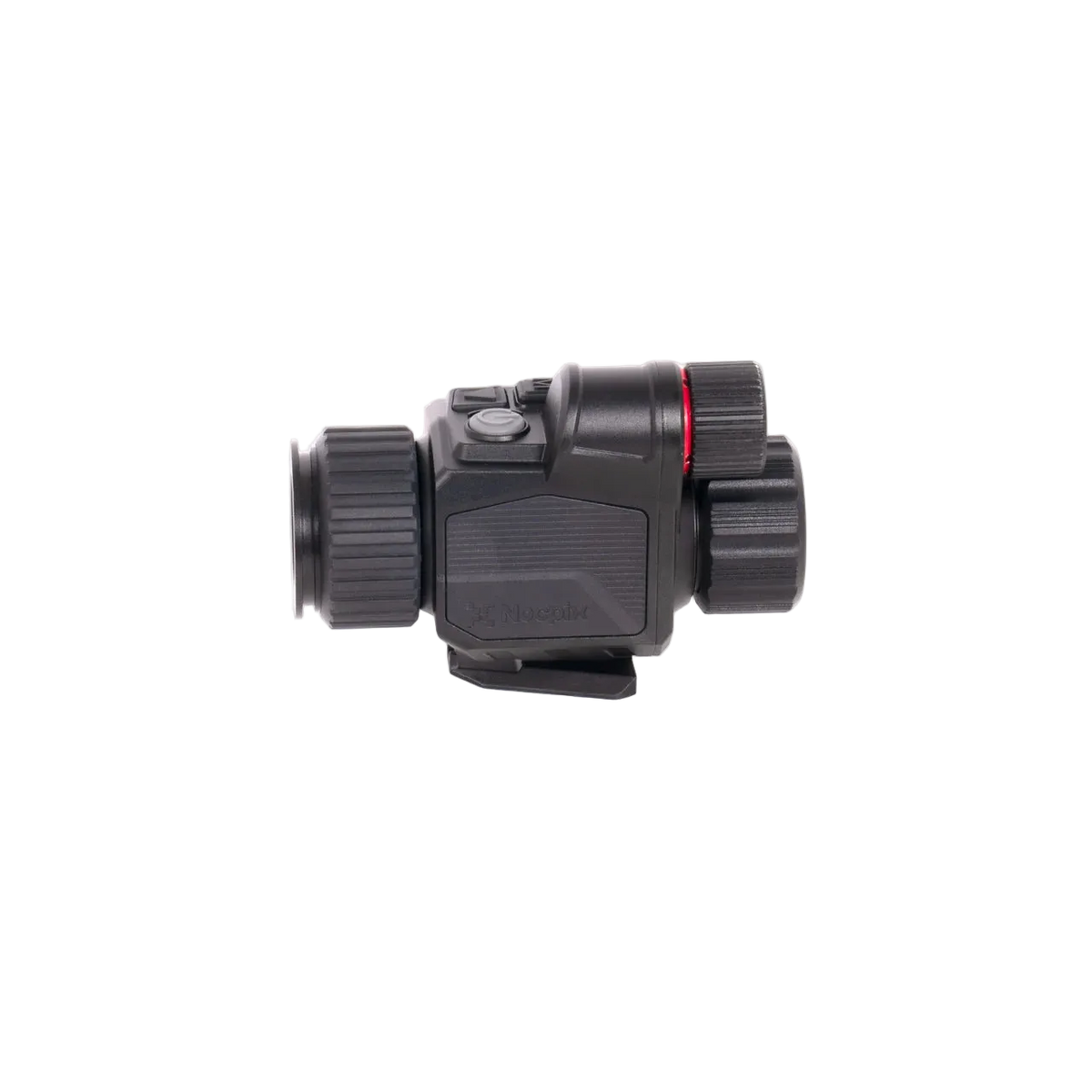

NOCPIX MINI2 H25 Helmet-Mountable Thermal Monocular 640x512

NOCPIX MINI2 H25 Thermal Monocular — 640×512 Thermal Imaging, Digital Night Vision & Fusion

The NOCPIX MINI2 H25 is a compact, lightweight thermal imaging device designed for both handheld and helmet-mounted operation. Its 640×512 thermal sensor, 12μm pixel pitch, 60Hz frame rate, and Reality+ image processing deliver detailed thermal imagery in a portable form factor. The device pairs thermal imaging with a digital night vision sensor and fusion overlay functionality for versatile viewing.

Featuring a 25mm F1.0 germanium objective lens, 1× optical magnification, and up to 4× digital magnification, the MINI2 H25 offers a detection range of up to 1,420 yards. Its AMOLED display and adjustable diopter provide a customizable viewing experience, while manual focus allows image adjustment for changing distances.

The MINI2 H25 includes onboard photo, video, and audio recording with 32GB of internal storage. Wi-Fi and mobile app support enable connectivity, while the integrated 1600-yard laser rangefinder, Picture-in-Picture, and One-Shot Zero add useful functionality. A built-in battery and included external helmet-mountable battery pack provide extended operation, with USB-C external power support.

Built for field use, the MINI2 H25 features an aluminum housing, IP67 ingress protection, and a QD Picatinny mounting interface. Its lightweight 8.47-ounce design supports handheld use or integration with a compatible helmet mounting system.

• 640×512 thermal sensor with digital night vision and thermal fusion overlay
• 12μm pixel pitch and 60Hz frame rate
• Thermal sensitivity below 15 mK
• 25mm F1.0 germanium objective lens
• 1× optical magnification and up to 4× digital magnification
• Detection range up to 1,420 yards
• Integrated laser rangefinder with range up to 1,600 yards
• AMOLED display, 960×540 resolution
• 17.6° horizontal and 14.1° vertical field of view
• 25mm eye relief
• -5 to +5 diopter adjustment
• Manual focus
• 32GB internal storage
• Onboard photo, video, and audio recording
• Wi-Fi and mobile app support
• Picture-in-Picture and One-Shot Zero
• Eight reticle options: one dynamic, six static, and one DIY
• Seven color palettes
• USB-C connectivity and external power support
• Built-in battery and included external helmet-mountable battery pack
• IP67 ingress protection
• Operating temperature: -4°F to 122°F
• QD Picatinny mounting interface
• Aluminum housing
• Weight: 8.47 oz
• Dimensions: 4 × 1.72 × 2.54 inches
• 5-year warranty
